Joyroom Sy C03 Audio Transfer Series 2 In 1 Audio Adapter Type C To Dual...
Product Product In Stock
TK. 950
Key product highlights will be added soon.
Detailed specifications will be added soon.
| Specification | Details |
| Brand | EarFun |
| Model | UA100 |
| Device Type | Portable USB DAC Headphone Amplifier |

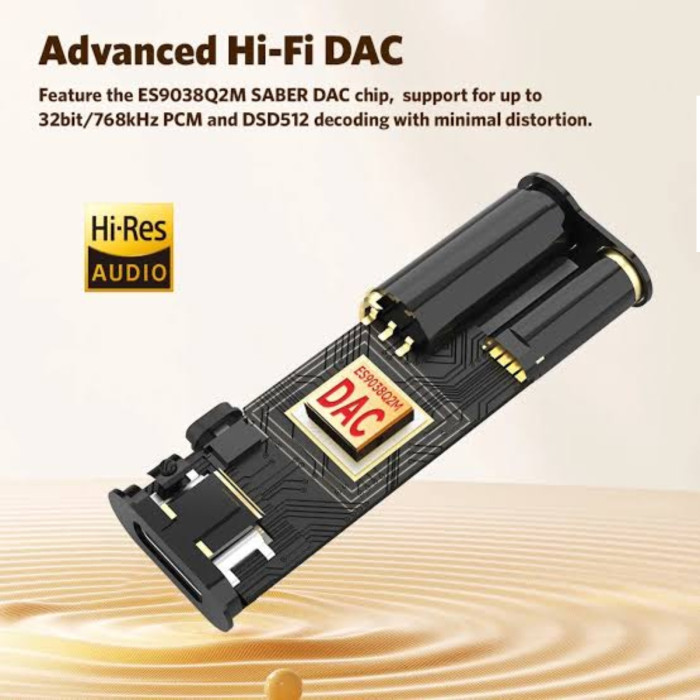

| DAC Chipset | ESS SABRE ES9038Q2M |
| Amplifier Chipset | Dual Ricore RT6863 |
| USB Transmission Chip | CT7601 |
| PCM Decoding Capability | Up to 32-bit / 768 kHz |
| DSD Support | Up to Native DSD512 |
| USB Audio Class compatibility | UAC 2.0 and UAC 1.0 (Dedicated hardware mode switch button) |
| 3.5mm Single-Ended Output Power | 2V @ 32$\Omega$ (125 mW) |
| 4.4mm Balanced Output Power | 2.5V @ 32$\Omega$ (195 mW) |
| Frequency Response Range | 20 Hz – 40,000 Hz (-0.5 dB) |
| Total Harmonic Distortion (THD+N) | Less than 0.0008% |
| Signal-to-Noise Ratio (SNR) | 121 dB (3.5mm SE) / 117 dB (4.4mm BAL) |
| Crosstalk Suppression | 71 dB (3.5mm SE) / 109 dB (4.4mm BAL) |
| Supported Headphone Impedance | 16$\Omega$ – 300$\Omega$ |
| Input Interface | USB Type-C |
| Output Interfaces | 3.5mm Single-Ended Jack / 4.4mm Balanced Pentaconn Jack |
| Status LED Color Codes | Blue (44.1/48kHz), Green (88.2-192kHz), Yellow (176.4/192kHz), Purple (352-768kHz), White (DSD), Red (UAC 1.0) |
| Chassis Material | CNC Machined Single-Block Matte Aluminum |
| Operating System Support | Android, iOS, Windows, Mac OS |
| Dimensions | 50 mm × 18 mm × 10 mm |
| Weight | 10.6 g |
